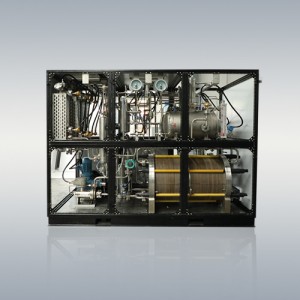

Water Electrolysis Hydrogen Plant Green Hydrogen Generator

Technical parameters:

H2 Capacity: 5-100Nm3/h

H2 Purity: 99.999%

H2 Pressure: 1.5-3.2MPa

Working temperature: ≤85℃

Feature:

1. The power supply adopts high-frequency inverter power;

2. High efficiency and small size;

3. With multiple protections, joint control with Siemens PLC;

4. Design allowance is enough and reserved.

Send email to us

Product Detail

Product Tags

Working Principal

The equipment use water electrolysis to generate pure hydrogen and pure oxygen. By controlling the liquid level of hydrogen / oxygen tank, to ensure the hydrogen purity. It will go through the processes such as hydrogen washing, gas / liquid separation and cooling process to finally produce hydrogen.

Structure Characteristics

1. Adopt Siemens PLC+HMI control to fully ensure the reliability of equipment control;
2. Optimized equipment process design,on line instruments such as hydrogen purity (trace oxygen) analyzer and hydrogen dew point detector are adopted to provide real-time online monitoring of hydrogen production data, guarantee the hydrogen production index of the equipment.

Specification

H2 Capacity Nm3/h	H2 purity	O2 purity	DC power Consumption (KW.H/m3 H2)	Working temperature	Pressure
5	99.999%	98.5%	≤4.5	≤85℃	1.5-3.2MPa
10	99.999%	98.5%	≤4.5	≤85℃	1.5-3.2MPa
15	99.999%	98.5%	≤4.5	≤85℃	1.5-3.2MPa
20	99.999%	98.5%	≤4.3	≤85℃	1.5-2.0MPa
30	99.999%	98.5%	≤4.3	≤85℃	1.5-2.0MPa
50	99.999%	98.5%	≤4.3	≤85℃	1.5-2.0MPa
80	99.999%	98.5%	≤4.3	≤85℃	1.5-2.0MPa
100	99.999%	98.5%	≤4.3	≤85℃	1.5-2.0MPa
